Verify the Data Connector

XLReporter retrieves data for a report using a History Group. A quick way to create a History Group is from the XLReporter Project Explorer.

  1. Select, Tools, Connector Groups

  2. Select the connector

  3. Select Add.

  4. Set the Group Type to Raw Values and click OK.

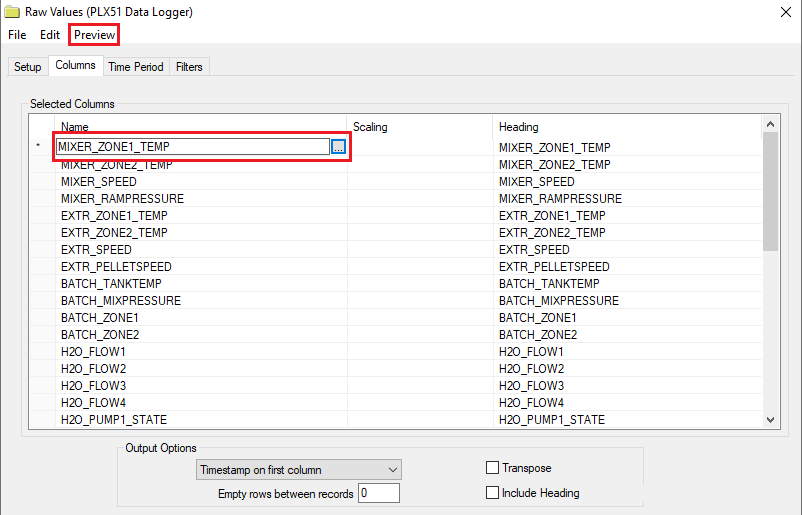

On the Columns tab of the group, select the tag Name(s).


From the menu bar:

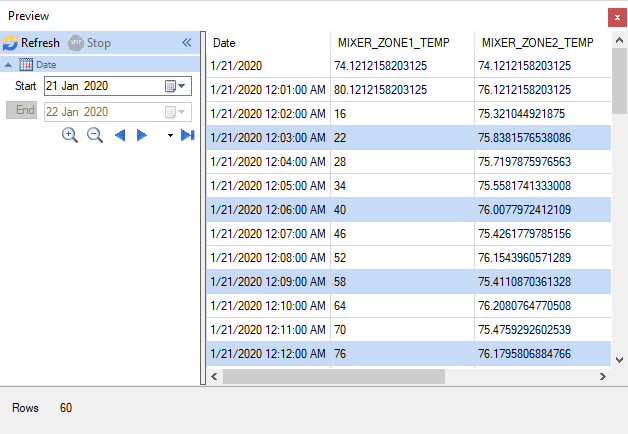

  1. Click Preview

  2. Enter a Start date

  3. Click Refresh.
