Verify Data Communication
To verify communication to FactoryTalk View SE Data Agent, open the Project Explorer and select the Tools tab. Launch the System Check application.
Click Add
Choose the FactoryTalk View SE Data Agent Connector from the dropdown list

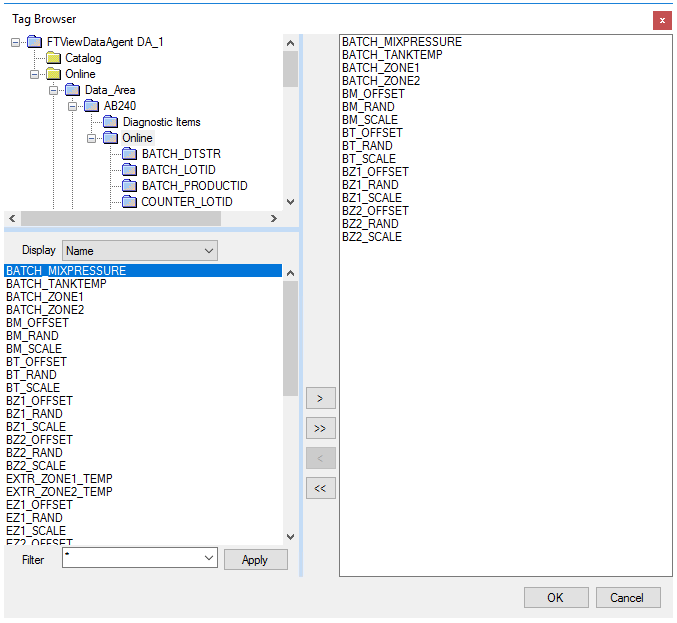

Click the pushbutton ([…]) next to Items to open the Tag Browser window.
Select one or more tags, click OK.

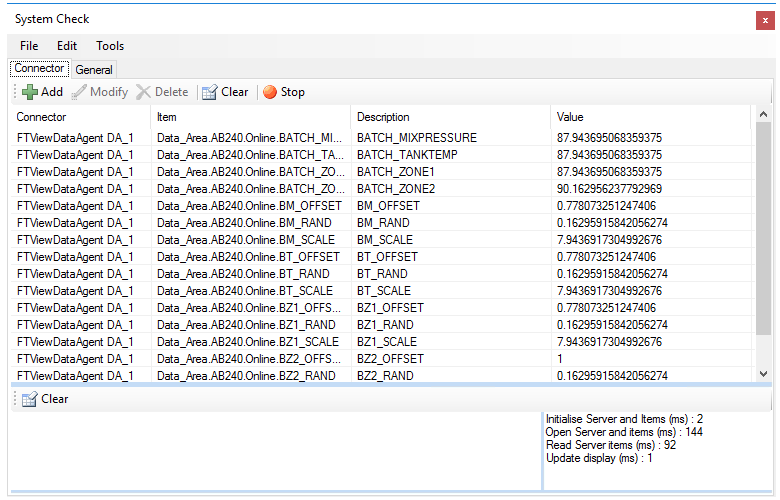

Click Start to verify the communication
