Data Group

The following describes the historical data group settings specific to this connector. For information on common features such as the Columns and Time Period Tabs, please refer to Historical Data Groups documentation.

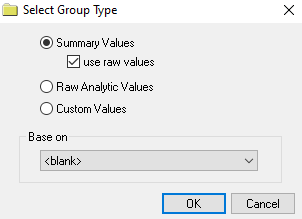

Group Types

The following group types are available for this connector:


  • Summary Values

    Summary values are calculated by XLReporter. Select use raw values to base calculations on raw values otherwise they will be based on sampled values from the Server.

  • Raw Analytic Values

    Numeric values from the Server

  • Custom Values

    Custom values queried from any table/view in the historian database using the Database Group.

Group Settings

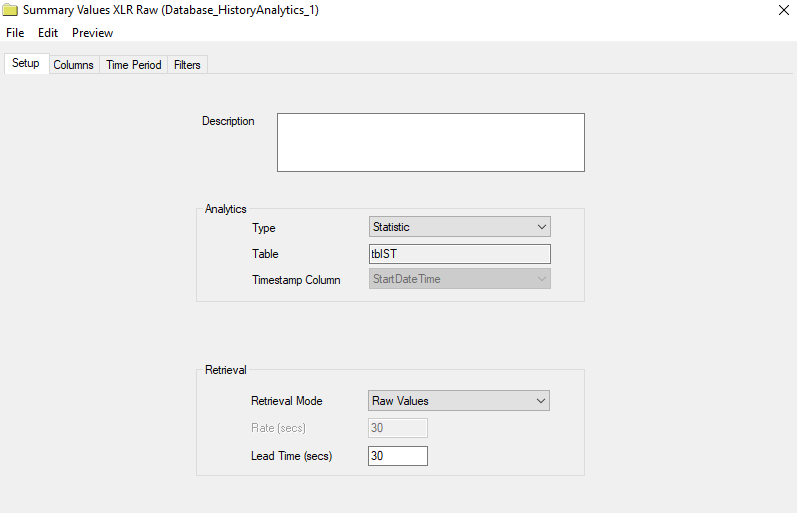

Setup Tab


The tables defined in the schema will be listed in the Type dropdown list in the order that they are configured.
