Connector

To configure the connector, from the Project Explorer select Connect, Connectors.

  1. Click Add

  2. Select Schneider Electric Software, EcoStruxure Geo SCADA Real-time values

  3. Click OK

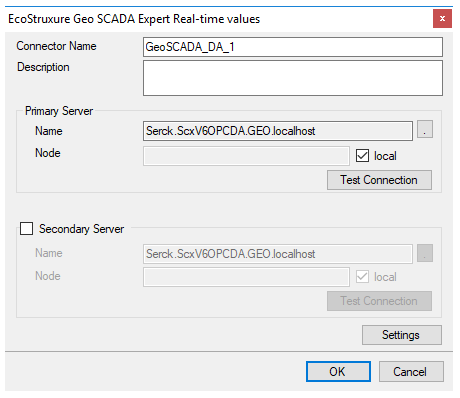

Primary Server

These settings define the Name and Node of the OPC DA server. For Name, click the browse pushbutton […] to browse the list of OPC DA servers.

For Node, leave local checked even for remote connections and click Refresh. Select the Server that starts with Serck.ScxV6OPCDA and contains the System Name as defined in the Geo SCADA Expert Client.

Use the Test Connection button to verify a connection to the server.

Settings

For information on the specific settings, see the DATA CONNECTIVITY, OPC document.
