Connector
To configure the connector to DeltaV, from the Project Explorer select Connect, Connectors.
Click Add
Select Emerson Automation Solutions, DeltaV Real-time values (OPC DA).
Click OK
 |

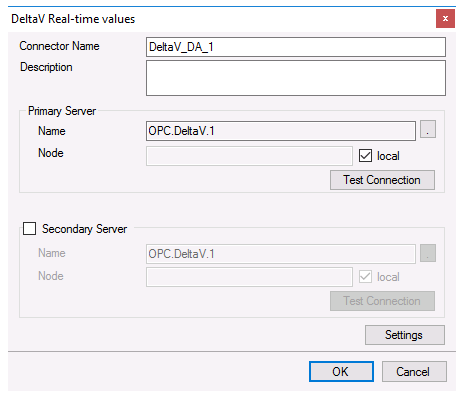

Primary Server
These settings define the Name and Node of the OPC DA server. Typically, the Name is defaulted correctly and for DeltaV, local should remain checked.
Use the Test Connection button to verify a connection to the server.
Secondary Server
This setting is not valid for DeltaV as only a local connection is supported.
Settings
For information on the specific settings, see the OPC Connectors document.
