Data Group

The following describes the historical data group settings specific to the InTouch Alarms connector.

Group Types


For InTouch Alarms the following group types are available:

Raw Values retrieves every value logged to the alarms database between the start and end time specified.

Custom Values opens the Database Group builder where a query can be configured to retrieve data from any table available in the database connected to by the connector.

Group Settings

Setup Tab

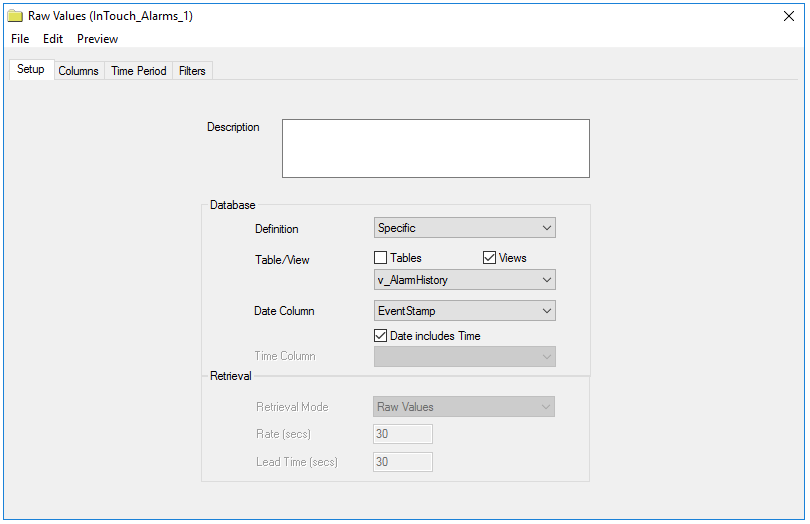

Database settings define where the alarm data for group is retrieved. Typically, Table/View should be set to v_AlarmHistory with Date Column set to EventStamp and Date includes Time checked.

Filters Tab

If the Perform by Server option is checked, any filter configured in this tab is put into the WHERE clause of the query sent to the database to retrieve data for the group. Otherwise, the configured filtering is performed by the reporting engine after the values are returned. It is recommended to leave this setting checked as the performance is much better.
