Emerson Automation Solutions DeltaV Event Chronicle

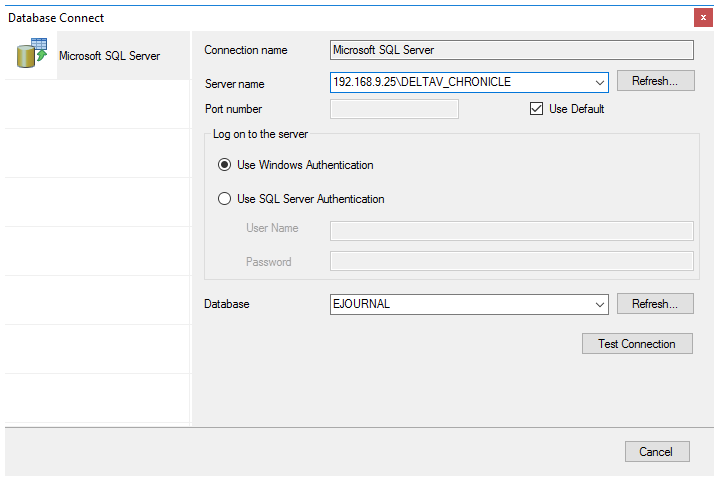

The DeltaV Event Chronicle is configured to log to a Microsoft SQL Server database.

By default, when browsing, the Server name is set to the local machine plus “\DELTAV_CHRONICLE”. If the Event Chronicle is on another machine, replace the local machine name with the other machine name but leave the rest. When browsing for the Server name, the instance name “\DELTAV_CHRONICLE” may not appear. If it does not, it will have to be manually added.

In newer versions of DeltaV the Port Number is not default and should be specified as 55114. Also, only Windows Authentication is supported. If you are connecting remotely, you must be logged on as a user that is valid on the machine where the Event Journal is running.

The Database should always be set to EJOURNAL.
