Connector

To configure the connector to Proficy Historian, from the Project Explorer select Connect, Connectors.

  1. Click Add

  2. Select GE Vernova, Proficy Historian.

  3. Click OK

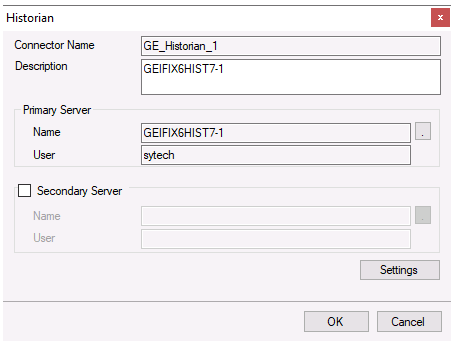

Primary Server

This defines the connection to the Proficy Historian. The browse button […] is provided to define.

The Server Name can be the physical name of the machine where the historian runs, the IP address of the machine or left blank to use the default historian defined in the Historian Interactive SQL application.

The User Name and Password settings are provided is required to connect to the Proficy Historian.

Secondary Server

These settings define the (optional) secondary Proficy Historian server to connect to if a connection to the Primary Server fails.

Settings

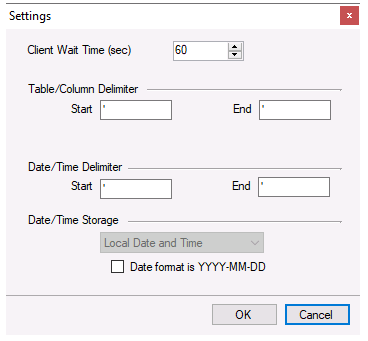

The Settings button opens the Settings dialog that defines characteristics of the database that are used to retrieve data.


Typically, these settings are defaulted correctly based on Proficy Historian.

If queries timeout, increase the Client Wait Time.

The delimiter and timestamp settings are typically filled in automatically for the database and can be modified for other databases.

Many databases require the Date format to be YYYY-MM-DD so that no interpretation needs to occur based on the Region settings of the Windows Operating System. It is recommended to always have this option checked.
