Overview
When multiple tables in a database each contain a timestamp column, this connector can be used to “combine” the tables to appear as a single table. This has the benefit that
Tag browsing spans over every table allowing a report to contain data from each.
The retrieved values are in one table.
Filters affect the entire selection.
Note that the minimum sample rate for the data in these tables is 1 minute.

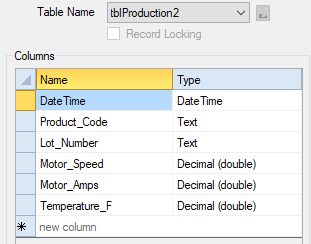

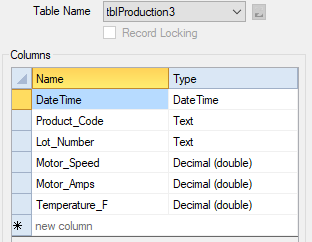

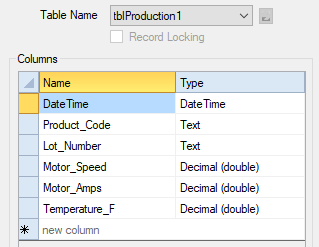

As an illustration, consider a database containing 3 identical tables which differ only by the production line populating the table:

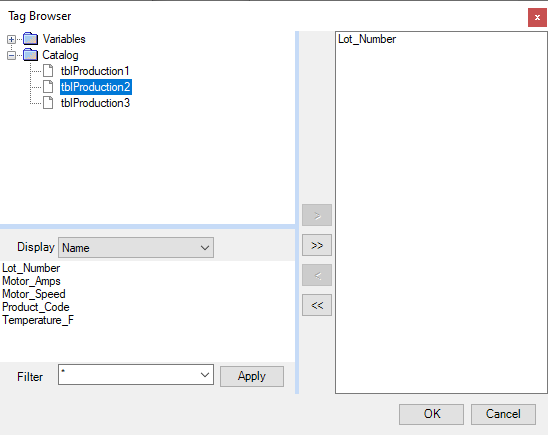

Using the connector, comparison between the production lines is greatly simplified because the user selects the tags from a single browser:
 |
