Data Group

The following describes the historical data group settings specific to the FactoryTalk View SE DataLogPro Historical Values connector.

Group Types


For FactoryTalk View SE DataLogPro Historical Values the following group types are available:

Summary Values from Server

This group type retrieves summary calculations directly from the historian. The following calculations are available:

  • First Sample

  • Last Sample

  • Count

  • Mean

  • Median

  • Mode

  • Skew

  • Range

  • Standard Deviation

  • Maximum

  • Minimum

  • Total

Summary Values from XLReporter

This group type retrieves sampled values from the database and performs calculations on those samples for reporting.

By default, summary values are calculated time weighted, and values are propagated based on the last known value. However, to change this so that summary values are calculated strictly on the data returned check use raw values.

Raw Values

This group retrieves every value logged to the database between the start and end time specified.

Group Settings

Setup Tab

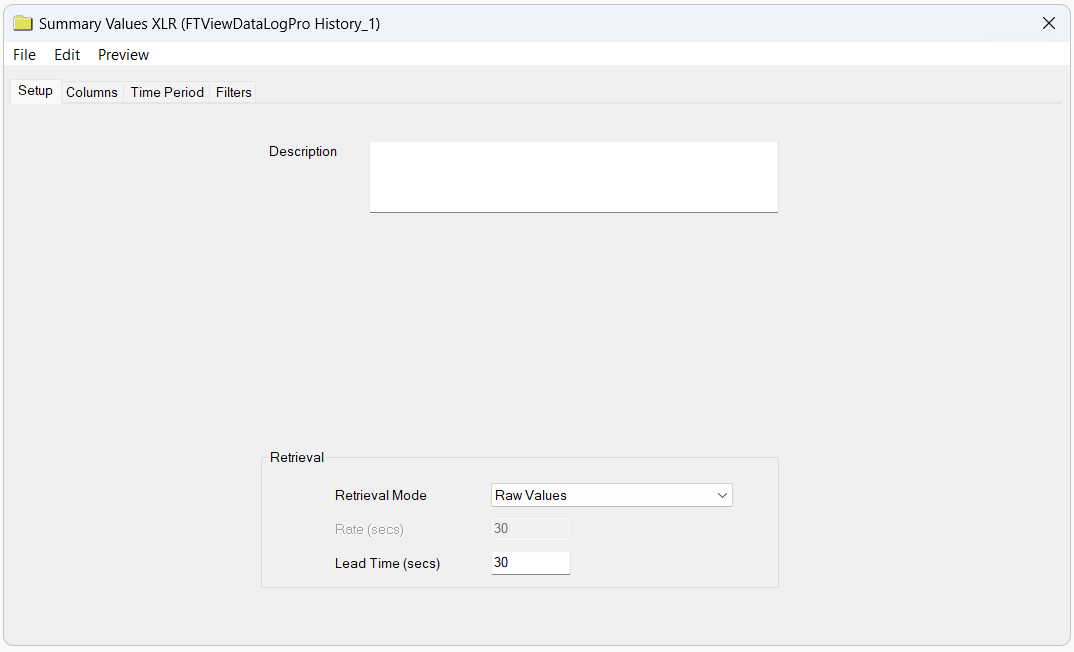

Retrieval (Summary Values for XLReporter Group)

The Retrieval settings define how data is retrieved for the calculations selected for the group. The following settings are available:

  • Retrieval Mode

  • This setting defines how data is retrieved from the historian. For FactoryTalk View SE DataLogPro Sampled Values and Raw Values are available.

  • Sampled Values uses first sample values returned from the historian.

  • Rate

  • The interval (in seconds) that sampled values are retrieved from the historian.

  • Lead Time

  • The amount of time (in seconds) to retrieve data before the start time.
