Verify Data Communication
To verify communication to RSLinx, open the Project Explorer and select the Tools tab. Launch the System Check application.
Click Add.
Choose the RSLinx Connector from the dropdown list.

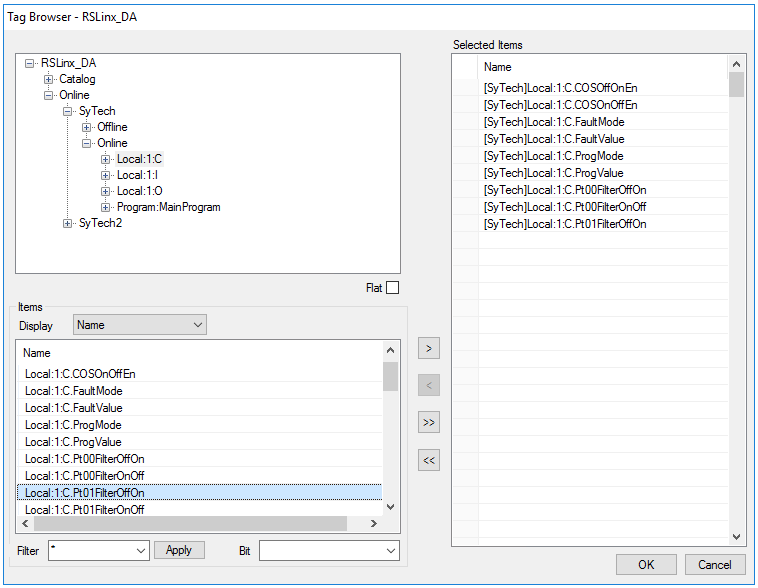

Click the pushbutton ([…]) next to Items to open the Tag Browser window.
Select one or more tags and click OK.

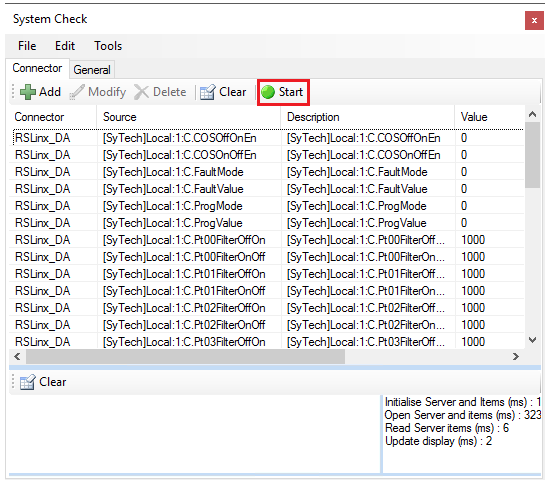

Click Start to verify the communication
 |
