ALARM DATA
The Alarm Data sub report metric provides meta data to display in a report Each item selected provides two values

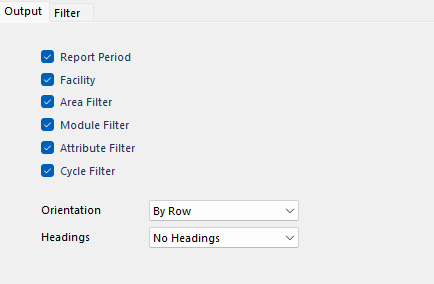

Output
 |
This tab defines the output that will be written to the report when generated.
Report Period
The start date and end date of the report
Facility
The facility name and location defined in the data connector
Area, Module, Attribute, Cycle Filter
The filter selected for the report expressed as a name and definition.
Orientation
How the metadata is written to the report.
By Row
Each selected item is written as a row in the report.
By Column
Each selected item is written as a column in the report.
Headings
If a heading is written for each selected item.
No Headings
No headings are written to the report
At Runtime
Headings are written to the report when the report is generated
At Deign Time
Headings are written to the report when the data connection is configured if the cells where the headings go are blank.
Filter
 |
This tab defines filters that are applied to the sub report metric.
Facility
The facility to get the data from. This can be the Default as defined in the connector or a Specific facility defined in the connector.
Position
Operator Position filter to apply to the sub report metric. Every Operator Position filter defined in the connector is available to select.
Module
Module filter to apply to the sub report metric. Every Module filter defined in the connector is available to select.
Attribute
Attribute filter to apply to the sub report metric. Every Attribute filter defined in the connector is available to select.
Cycle
Cycle filter to apply to the sub report metric. Every Cycle filter defined in the connector is available to select.
Overwrite at Runtime
If checked, if filters are specified either On Demand or in the Schedule, the filters set here take precedence. Otherwise, the filters specified in On Demand or the Schedule take precedence over what is set here.
