Connector

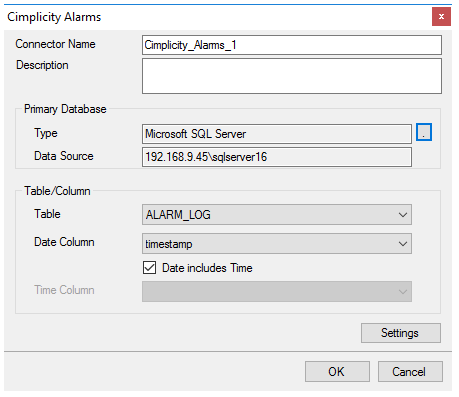

To configure the connector to Cimplicity Alarms, from the Project Explorer select Connect, Connectors.
Click Add
Select GE Vernova, Cimplicity Alarms.
Click OK
Primary Database
This defines the connection to the database where the Cimplicity alarms are logging. The browse button […] is provided to define.
Table/Column
Once the connection is made, under Table, specify the Name of the table containing the alarms. This is ALARM_LOG. Set Date Column to timestamp and check Date includes time.
Settings
The Settings button opens the Settings dialog that defines characteristics of the database that are used to retrieve data.
Typically, these settings are defaulted correctly for the Primary Database.
If queries timeout, increase the Client Wait Time.
The delimiter and timestamp settings are typically filled in automatically for the database and can be modified for other databases.
The Date/Time Storage settings define how timestamps are stored in the database. Using this setting the timestamps are manipulated when data is retrieved so that local timestamps are submitted in and returned.
Note
Many databases require the Date format to be YYYY-MM-DD so that no interpretation needs to occur based on the Region settings of the Windows Operating System. It is recommended to always have this option checked.
