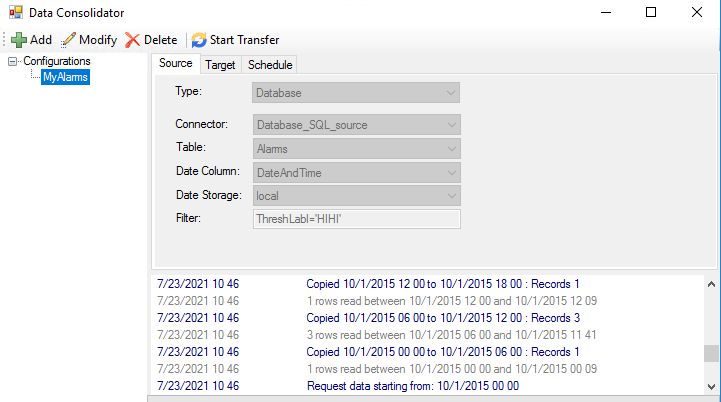

For example, consider the following configuration used to consolidate critical alarms (HIHI) from a remote SQL Server database table into a local Access database table.
The Data Consolidator will look into the Alarms table of the Database_SQL_source data connector and push all records logged after 2015-10-01 00:15:00 that have a ThreshLabl value of HIHI into a mirrored copy of the table that has been created in the Database_Access_target connector.
After configuring the Schedule tab and clicking OK, the Run Application line will be added to the schedule.
When Start Transfer is selected from the designer a log will be displayed in the bottom window.
