Connector
 |
Connection

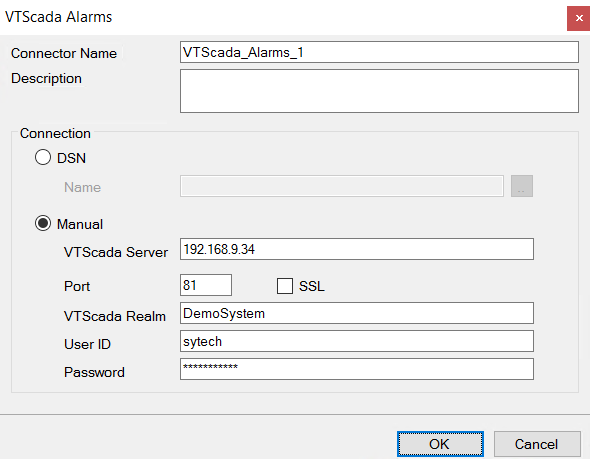

These settings define how to connect to the VTScada Alarms.
DSN
With this option specify the Name of a DSN (Data Source Name) defined within the Windows Operating System that is configured to connect to the VTScada Alarms.
It is recommended to specify a System DSN for Name because it will be accessible by any user logged into the machine.
Note
Note, on 64-bit operating systems, the DSN must be defined as a 32-bit DSN. This can be done by following the DSN section in VTScada Historical values.
Manual
With this option specify all the settings needed to connect to the VTScada Alarms.
