WIN-911 Alarm Notifications


The WIN-911 alarm notification system logs every alarm it is configured to monitor. XLReporter’s Advanced Alarm Metrics can be calculated on this set of alarms with this option.

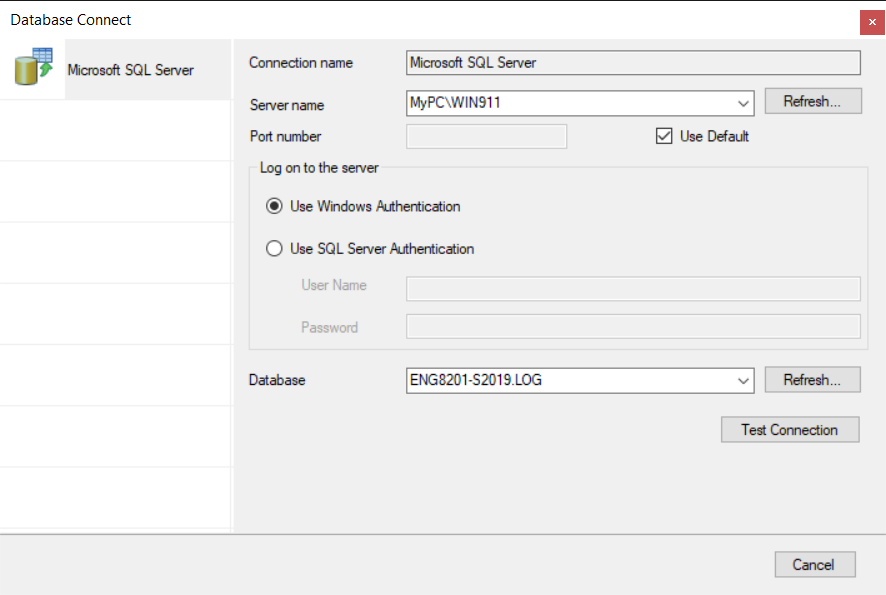

The connection should be made to the SQL Server instance where the WIN-911 database is configured. Typically, this is on the same machine where WIN-911 is installed and the instance is named WIN911.

The Database selected should end with .LOG.

Note that alarms logged with the IsBypassed column set to TRUE/1 will be displayed in the AlarmDisabled worksheet in the Alarm Report template.
