Verify Data Communication
To verify communication to the InTouch OPC UA Server, open the Project Explorer and on the right, expand the Diagnostics section. Launch the System Check application.
Click Add
Choose the InTouch OPC UA Server connector from the dropdown list,

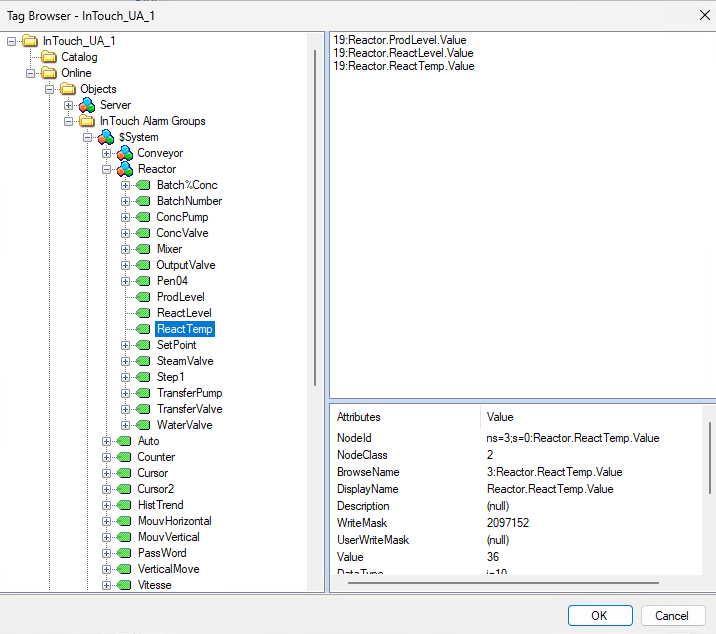

Click the pushbutton ([…]) next to Items to open the Tag Browser window.
Select one or more tags, click OK
 |

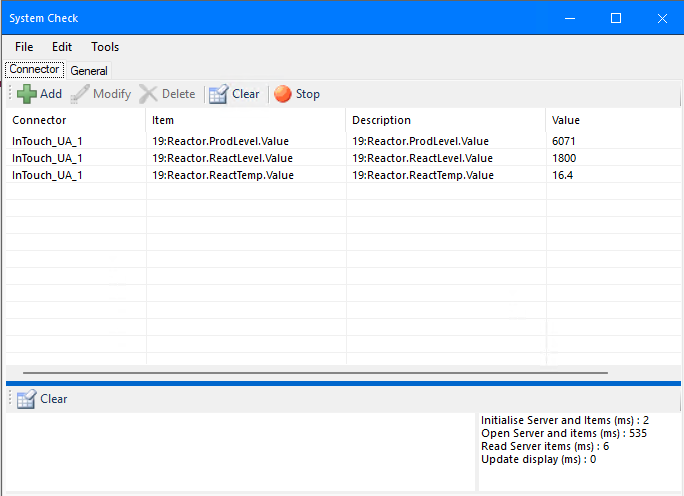

Click Start to verify the communication.
 |
