ALARM COUNT

The Alarm Count sub report metric provides new alarm counts over area, module and attribute.

Settings


  • New Alarm Count by

    • Attribute

The counts are calculated by module/tag attributes like HI and LO..

  • Module

The counts are calculated by module (tag name)

  • Area

The counts are calculated by area

Output

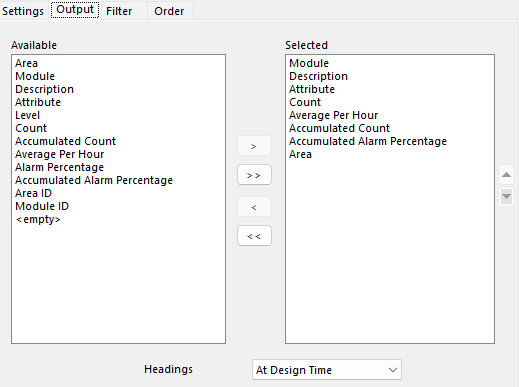

The values to write to the report.

  • Available/Selected

  • This list of available columns varies depending how the new alarms around counted by. Outside of fixed column values like Area, Module, etc., the following metric columns are available:

    • AccumulatedCount

      Accumulated count of the number of new active alarms.

    • Average Per Hour

      Count of the number of new active alarms divided by the total number of hours of the report period.

    • Alarm Percentage

      Percentage of the number of new active alarms.

    • Accumulated Alarm Percentage

      Accumulated percentage of the number of new active alarms.

  • Headings

    If a heading is written for each selected item.

    • No Headings

      No headings are written to the report

    • At Runtime

      Headings are written to the report when the report is generated

    • At Deign Time

      Headings are written to the report when the data connection is configured if the cells where the headings go are blank.

Filter


This tab defines filters that are applied to the sub report metric.

  • Facility

    The facility to get the data from. This can be the Default as defined in the connector or a Specific facility defined in the connector.

  • Position

    Operator Position filter to apply to the sub report metric. Every Operator Position filter defined in the connector is available to select.

  • Module

    Module filter to apply to the sub report metric. Every Module filter defined in the connector is available to select.

  • Attribute

    Attribute filter to apply to the sub report metric. Every Attribute filter defined in the connector is available to select.

  • Cycle

    Cycle filter to apply to the sub report metric. Every Cycle filter defined in the connector is available to select.

  • Overwrite at Runtime

    If checked, if filters are specified either On Demand or in the Schedule, the filters set here take precedence. Otherwise, the filters specified in On Demand or the Schedule take precedence over what is set here.

Order


The order of how records are returned from this subreport.
