Connector

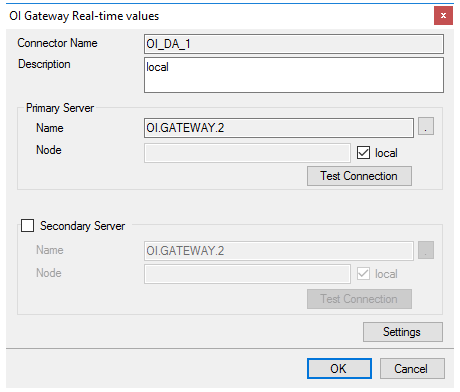

To configure the connector to OI Gateway Real-time values, from the Project Explorer select Connect, Connectors.

  1. Click Add

  2. Select AVEVA, OI Gateway Real-time values

  3. Click OK


Primary Server

These settings define the Name and Node of the OPC DA server. Typically, the Name is defaulted correctly. If the OI Gateway server is on the local machine, leave local checked. Otherwise, uncheck and specify either the name or IP address of the machine where the OI Gateway server is running.

Use the Test Connection button to verify a connection to the server.

Secondary Server

These settings define the (optional) secondary OI Gateway server to connect to if a connection to the Primary Server fails.

Settings

For information on the specific settings, see the OPC Connectors document.OPC Connectors
