Data Group

The following describes the historical data group settings specific to the AVEVA Edge Historical Values connector.

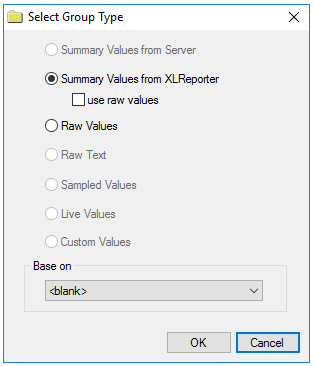

Group Types


The following group types are available:

Summary Values from XLReporter retrieves sampled values from the historian and performs calculations on those samples for reporting.

Note

By default, summary values are calculated time weighted, and values are propagated based on the last known value. However, to change this so that summary values are calculated strictly on the data returned check use raw values.

Raw Values retrieves values logged to the historian between the start and end time specified.

Group Settings

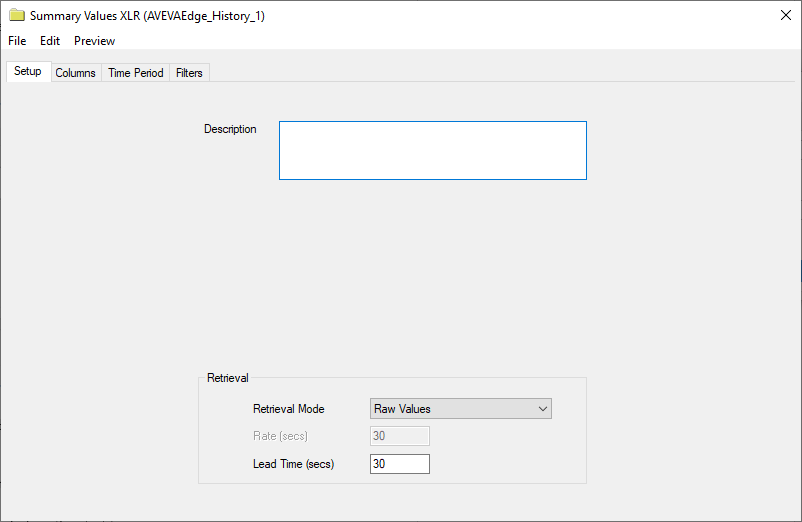

Setup Tab


For Summary Values for XLReporter groups, the Retrieval settings define how data is retrieved for the calculations selected for the group. The following settings are available:

  • Retrieval Mode defines how data is retrieved from the historian. Raw Values are available.

  • Lead Time defines the amount of time (in seconds) to retrieve data before the start time.
